Concrete grinding projects traditionally create massive dust clouds that pose serious health risks and slow down work progress. Modern dustless concrete grinding techniques have revolutionised the industry by eliminating up to 99% of airborne particles.
We at Superfloor Australia have seen firsthand how proper equipment and methods transform job sites into cleaner, safer environments. The right approach protects workers while delivering superior surface finishes.
Equipment and Technology for Dustless Concrete Grinding
Industrial vacuum systems with HEPA filtration form the backbone of effective dustless operations. Industrial vacuums and dust extractors rated for use with hazardous dusts are classed as L, M or H, with H Class dust extractors capturing particles as small as 0.3 microns and meeting strict occupational safety standards while they maintain airflow rates of 3,500 cubic feet per minute. Workshop vacuums with bypass motor systems prevent fine masonry dust from clogging motors, unlike domestic units that fail under construction demands. Operators must match vacuum capacity to grinder size – 7-inch grinders require minimum 100 CFM airflow, while 10-inch units need 150 CFM or higher.
Diamond Tool Selection Affects Surface Quality
Diamond discs with different bond hardness levels tackle various concrete densities effectively. Soft bond diamonds work best on hard concrete surfaces, while hard bond tools handle soft concrete without premature wear. Segmented diamond cups remove coatings and adhesives faster than turbo designs, though turbo configurations produce smoother finishes. Professional operators replace diamond tools every 2,000-3,000 square feet to maintain optimal performance and dust control efficiency.
Wet Methods Beat Dry Techniques

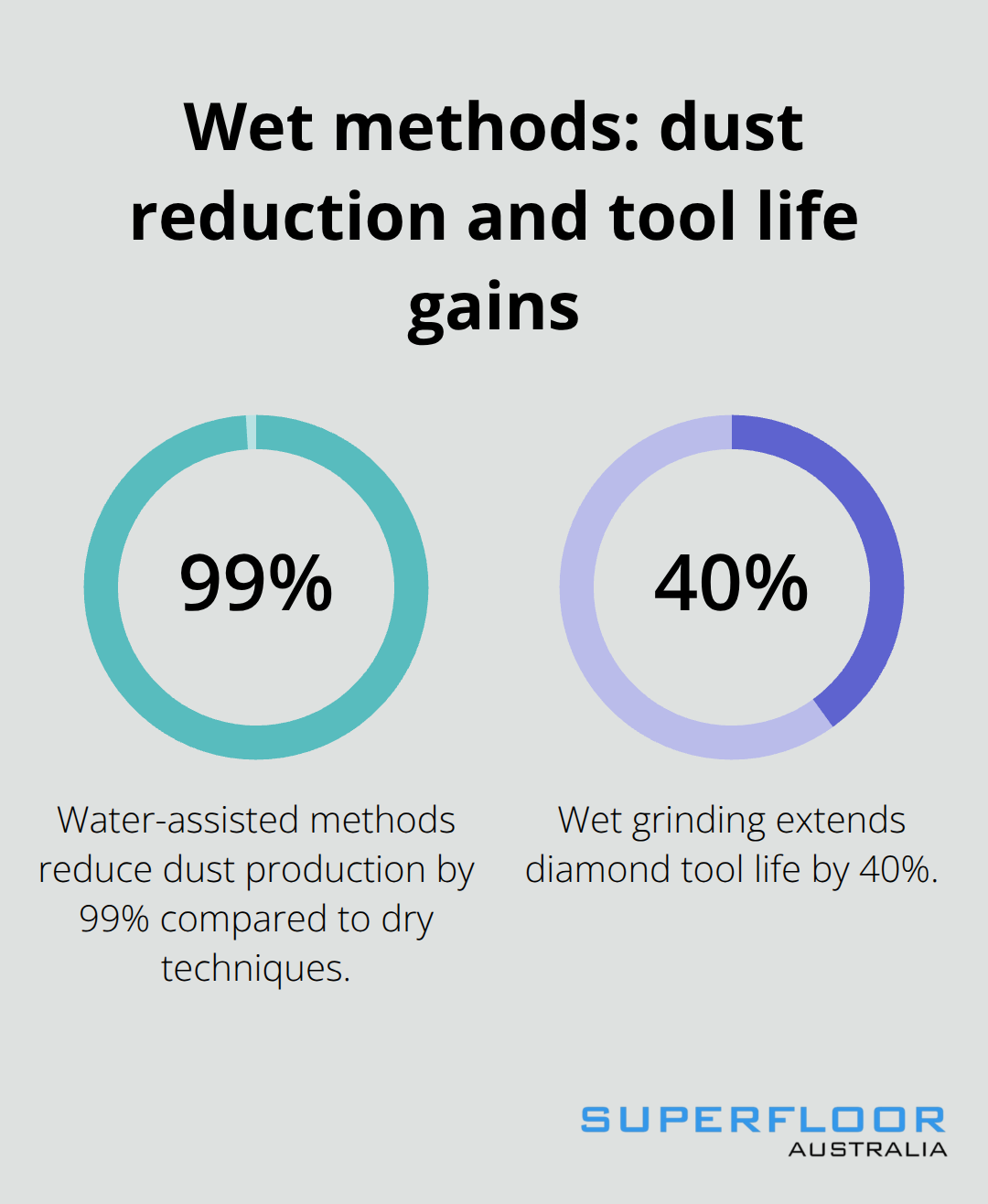

Water-assisted methods reduce dust production by 99% compared to dry techniques while they extend diamond tool life by 40%. Wet systems use approximately 20 gallons per hour versus pressure washers that require 120-240 gallons (making them environmentally efficient). However, wet methods create slurry management challenges and limit mobility on multi-level projects. Dry methods with proper vacuum extraction offer greater versatility and faster setup times, which makes them preferable for residential applications where water damage risks exist.
Dust Shrouds Maximise Collection Efficiency
Dust shrouds connect directly to industrial vacuum units and capture particles at the source during concrete work. The TileDuster Dust collector shroud proves popular among contractors for its effectiveness when they cut ceramic, porcelain, or marble tiles. APE 100mm Edge Snub Nose shrouds feature Velcro rubber skirts that optimise dust collection during edge work (particularly in tight spaces). These on-tool extraction systems work best when operators combine them with air scrubbers to create safer work environments.
Proper equipment selection sets the foundation, but operators must master specific techniques to achieve consistent dustless results across different project types.
How Do You Execute Perfect Dustless Grinding
Surface assessment determines success before operators start any equipment. Concrete hardness testing with a rebound hammer identifies the correct diamond bond selection – hard concrete above 4,000 PSI requires soft bond diamonds, while concrete below 3,000 PSI needs hard bond tools. Moisture content testing with calcium chloride kits prevents adhesion failures later. Operators must identify existing coatings, adhesives, and contaminants through visual inspection and scrape tests. Oil stains require degreasing treatments, while paint and sealers need specific diamond cup configurations for efficient removal.
Speed Settings Control Dust Capture
Variable speed grinders operate between 1,750-3,450 RPM and deliver optimal dust control when operators match them to surface conditions. Hard concrete requires higher speeds (3,000+ RPM) with lighter pressure, while soft surfaces need slower speeds (2,000 RPM) with increased downward force. Excessive speed creates heat buildup that glazes diamond segments and reduces dust capture efficiency. Professional operators maintain consistent 15-20 pounds of downward pressure through proper body positioning and machine control.
Pressure Application Affects Results
Operators achieve uniform surface profiles between CSP 2-4 for most applications when they apply consistent pressure. Too much pressure burns diamond segments and creates excessive heat, while insufficient pressure fails to remove surface contaminants effectively. The machine weight provides most of the necessary force – operators guide rather than push the equipment. Overlapping passes by 2-3 inches prevent streaking while maintaining consistent dust extraction throughout the project.
Pattern Execution Prevents Missed Areas
Systematic patterns prevent missed spots and maintain consistent dust extraction throughout projects. Cross-hatching at 45-degree angles produces uniform surface textures while maximising diamond tool contact. Edge work requires specialised shrouds and reduced speeds to prevent chipping. Operators should complete perimeter work first, then work inward with straight-line patterns and 50% overlap.
Corner areas need hand-held grinders with 4-inch diamond cups operating at 11,000 RPM for precise control.

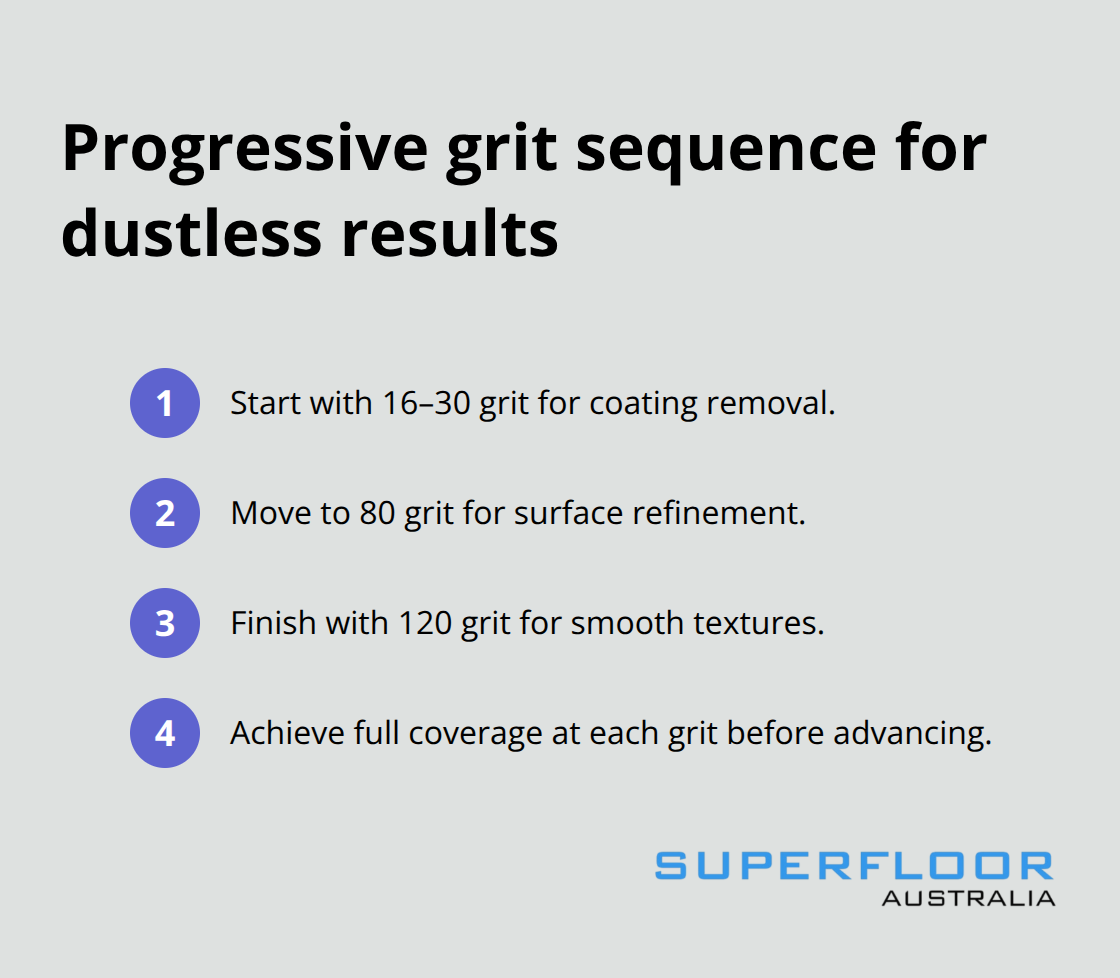

Progressive Grit Sequences Deliver Quality
Multiple passes with progressively finer grits achieve smooth finishes while maintaining effective dust collection at each stage. Start with 16-30 grit diamonds for coating removal, progress to 80-grit for surface refinement, then finish with 120-grit for smooth textures. Each grit level requires complete coverage before advancing to the next stage. This systematic approach maximises dust capture efficiency while creating the foundation for superior health and safety outcomes on every project.
Why Dustless Methods Protect Worker Health
Silica dust exposure during traditional concrete operations causes silicosis, lung cancer, and chronic respiratory diseases according to the National Institute for Occupational Safety and Health. Workers who inhale crystalline silica particles face significant risk of developing chronic silicosis when exposed to respirable crystalline silica. The Occupational Safety and Health Administration reports that 2.3 million workers encounter silica dust annually, with construction workers who show 50% higher rates of respiratory illness compared to other industries.
Particle Extraction Systems Save Lives

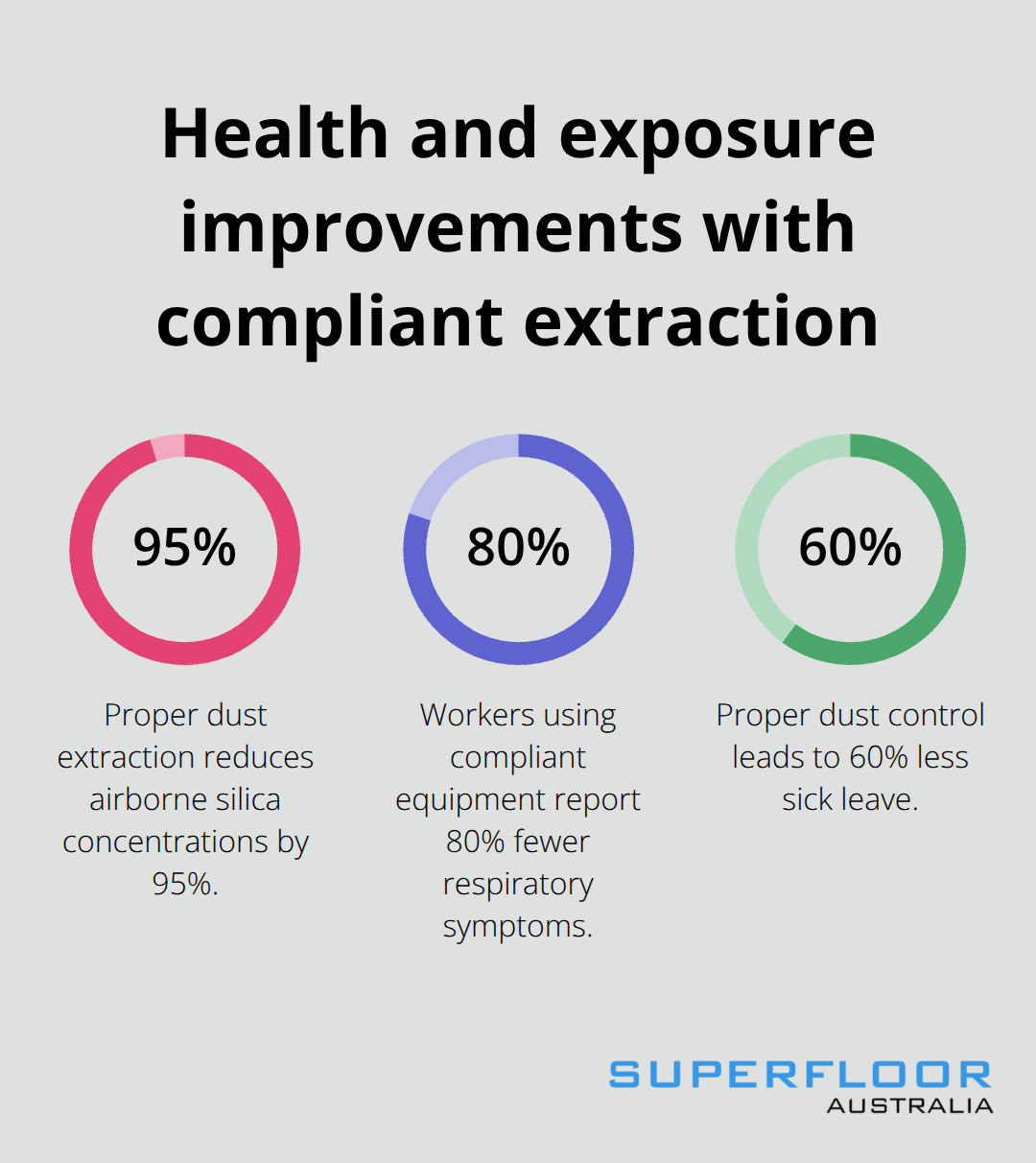

H Class dust extractors capture 99.995% of particles down to 0.3 microns and reduce worker exposure to dangerous levels below the permissible exposure limit of 50 micrograms per cubic metre over 8 hours. Studies from the Centres for Disease Control show that proper dust extraction systems reduce airborne silica concentrations by 95% compared to uncontrolled operations. Workers who use compliant dust extraction equipment show 80% fewer respiratory symptoms and require 60% less sick leave according to construction industry health surveys.
Real-Time Monitoring Prevents Overexposure
Air monitors measure real-time particle concentrations and allow operators to adjust extraction settings immediately when levels exceed safe thresholds. These devices provide instant feedback on dust control effectiveness (particularly in enclosed spaces where particle buildup occurs rapidly).
Professional operators check air quality readings every 30 minutes during active work and document results for compliance records.
Compliance Requirements Prevent Violations
Workplace safety regulations require comprehensive dust control measures on construction sites, with violations that carry significant fines per incident. Australian workplace safety regulations mandate P2 rated respiratory protection and H Class vacuum systems for concrete operations. Companies that implement comprehensive dust control programs reduce workers compensation claims by 40% and avoid regulatory penalties that average $45,000 per violation.
Documentation Protects Against Legal Issues
Documentation of dust control measures, worker training records, and air quality results provides legal protection during safety inspections. Professional dust extraction equipment from certified suppliers maintains compliance while it protects worker health and company profitability across every project. Regular equipment maintenance logs and calibration certificates demonstrate commitment to workplace safety standards.
Final Thoughts
Dustless concrete grinding transforms hazardous job sites into safe, productive environments through proven techniques and professional equipment. H Class vacuum systems with HEPA filtration capture 99.995% of harmful particles, while proper diamond tool selection and systematic patterns deliver superior surface quality. Water-assisted methods reduce dust by 99% compared to traditional approaches, though dry extraction offers greater versatility for residential projects.
The health benefits extend far beyond immediate safety improvements. Workers experience 80% fewer respiratory symptoms and require 60% less sick leave when proper dust control measures are implemented. Companies reduce workers compensation claims by 40% while they avoid regulatory penalties that average $45,000 per violation.
Professional equipment makes the difference between compliance and excellence. Quality dust extraction systems protect worker health while they deliver the precise surface profiles needed for durable floor finishes (essential for long-term performance). We at Superfloor Australia provide high-quality polished concrete solutions that require proper concrete preparation as the foundation for success.
