At Superfloor Australia, we understand the critical role wire mesh plays in concrete floor reinforcement.
Selecting the right wire mesh for concrete floors can significantly impact the strength, durability, and longevity of your project.
This guide will walk you through the key factors to consider when choosing wire mesh, ensuring you make an informed decision for your specific needs.
What Is Wire Mesh and Why Use It in Concrete Floor Reinforcement?
Types of Wire Mesh
Wire mesh is an essential component in concrete floor reinforcement. The most common type is welded wire mesh, which consists of steel wires welded at intersections. It comes in various gauges and spacings. For instance, 6×6 10/10 mesh (6-inch grid with 10-gauge wire) is popular for residential slabs, while heavier-duty options like 6×6 6/6 mesh are preferred for commercial floors.
Woven wire mesh offers an alternative, providing more flexibility but less rigidity than welded mesh. This type finds its use in specialised applications where conformity to curved surfaces is necessary.

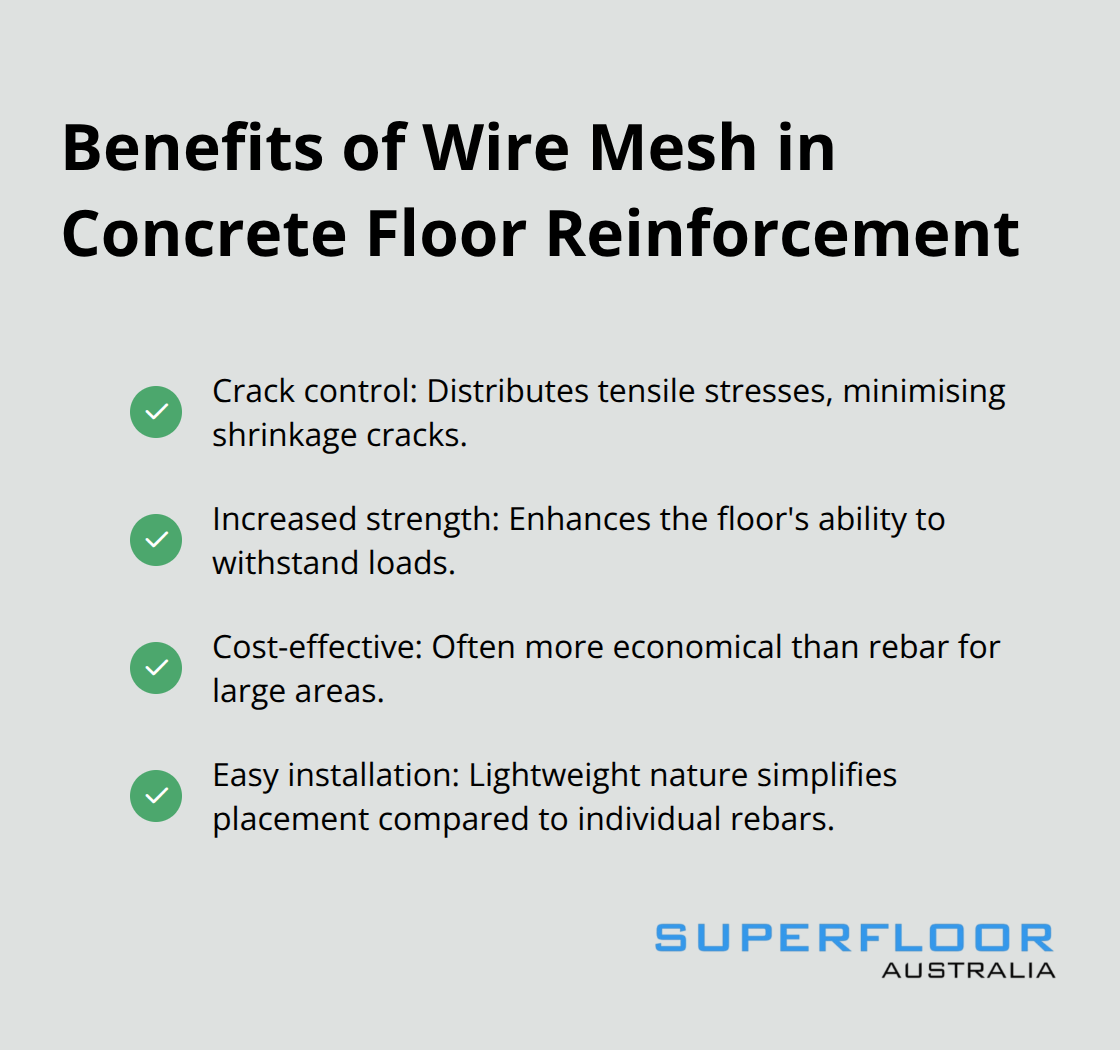

Benefits of Wire Mesh
Wire mesh offers several advantages in concrete floor reinforcement:
Factors Affecting Selection
The selection of the right wire mesh depends on several factors:
- Load requirements: Heavier loads necessitate stronger mesh with thicker wires and smaller grid sizes.
- Slab thickness: Thicker slabs generally require heavier gauge wire.
- Environmental conditions: For areas exposed to moisture or chemicals, galvanised or stainless steel mesh might be necessary.
- Building codes: Local regulations often dictate minimum requirements for reinforcement.
Importance of Project-Specific Assessment
Each project has unique requirements that influence the choice of wire mesh. Factors such as load requirements and environmental conditions play a role in determining the most suitable wire mesh.
For example, a residential garage might require a different wire mesh specification compared to a high-traffic commercial warehouse floor. Similarly, a concrete floor in a chemical processing plant would need more robust reinforcement than a standard office space.
The next chapter will explore key considerations for selecting wire mesh in more detail, helping you make an informed decision for your specific project needs.
How to Select the Right Wire Mesh for Your Project
Choosing the appropriate wire mesh for concrete floor reinforcement impacts the longevity and performance of your project. The right selection can make a significant difference in the final outcome.
Wire Diameter and Spacing: Finding the Perfect Balance
Wire diameter and spacing of mesh directly influence its strength and effectiveness. Wire diameters typically range from 4mm to 12mm, with spacing varying from 100mm to 300mm. Residential projects often use 6mm diameter wire with 200mm spacing. Commercial or industrial floors may require heavier options (e.g., 10mm diameter wire with 100mm spacing).

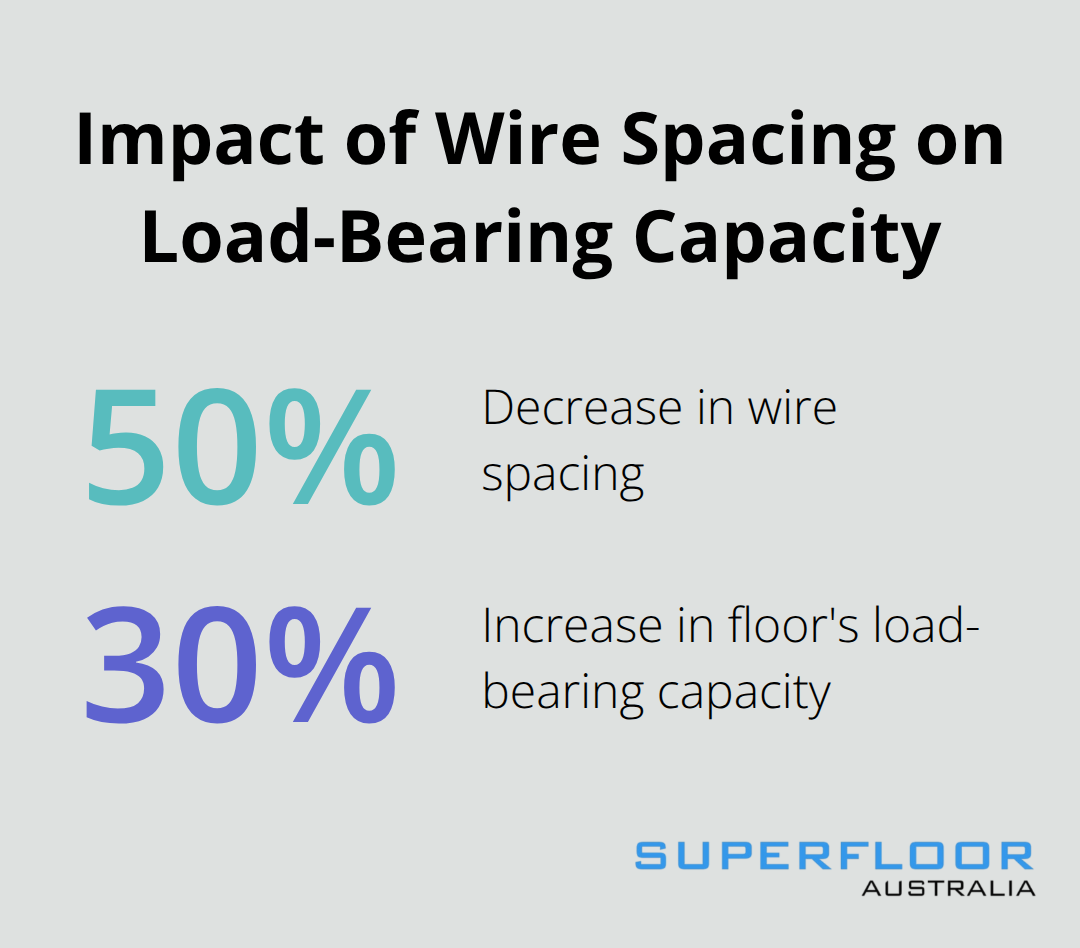

A study by the Concrete Reinforcing Steel Institute revealed that a 50% decrease in wire spacing can increase the floor’s load-bearing capacity by up to 30%. This underscores the importance of carefully considering these parameters based on specific project needs.
Assessing Strength Requirements
The strength requirements of your concrete floor depend on its intended use. A residential garage floor has different needs compared to a warehouse or manufacturing facility. The Australian Standard AS3600-2018 provides nationally acceptable unified rules for the design and detailing of concrete structures.
Heavy-duty applications, such as industrial floors subject to forklift traffic, require mesh with a higher yield strength. This ensures the floor can withstand constant stress without compromising structural integrity.
Environmental Considerations
Environmental factors play a key role in mesh selection. Coastal areas or locations exposed to de-icing salts require galvanised or stainless steel mesh to prevent corrosion. Galvanisation prevents rust by coating the steel or iron with a layer of zinc, creating a physical barrier.
Areas exposed to chemicals (manufacturing plants or laboratories) benefit from epoxy-coated mesh for superior protection. While more expensive, it can significantly reduce long-term maintenance costs and extend the floor’s lifespan.
Balancing Cost and Performance
Budget constraints are a reality, but it’s important to view wire mesh selection as a long-term investment. Opting for cheaper, lighter mesh might save money initially but could lead to costly repairs or replacements in the future.
A cost-benefit analysis of high-quality wire mesh can help in understanding its impact on energy efficiency and long-term costs. This demonstrates that spending more upfront on quality reinforcement can lead to significant savings over time.
When considering costs, factor in not just the material price, but also installation time and potential future repairs. Heavier mesh might be more expensive and time-consuming to install, but it could prevent costly floor failures down the line.
The next chapter will explore best practices for wire mesh installation, ensuring you maximise the benefits of your chosen reinforcement.
How to Install Wire Mesh Correctly
Placement and Overlap Techniques
The effectiveness of wire mesh reinforcement depends on its position within the concrete slab. Place the mesh in the middle third of the slab’s thickness to resist tensile stresses and control cracking optimally.
When laying wire mesh, maintain proper overlap between sheets. Where splices are required, the top reinforcement shall be spliced at or near the midspan, and the bottom reinforcement shall be spliced at or near the support.
Use wire mesh chairs or supports to keep the mesh in the correct position during concrete pouring. Place these devices at regular intervals (typically every 0.6 to 1 metre) to prevent the mesh from sinking to the bottom of the slab where it would be less effective.
Concrete Cover and Protection
Adequate concrete cover over the wire mesh protects it from corrosion and ensures its long-term effectiveness. The required cover depth varies depending on the environment and exposure conditions. For internal floors, a minimum cover of 20mm typically suffices. However, external slabs or those exposed to aggressive environments may require a cover of 40mm or more to unprotected ground.
Use plastic spacers or bar chairs to achieve the correct cover. These tools help maintain the desired distance between the mesh and the formwork or ground.
Handling and Storage
Proper handling and storage of wire mesh impacts its performance. Store mesh in a clean, dry area to prevent rust and contamination. When moving mesh sheets, lift them rather than drag to avoid bending or distortion.
Before installation, inspect each sheet for any damage or deformities. Replace or straighten bent or kinked wires if possible, as they can compromise the mesh’s effectiveness.

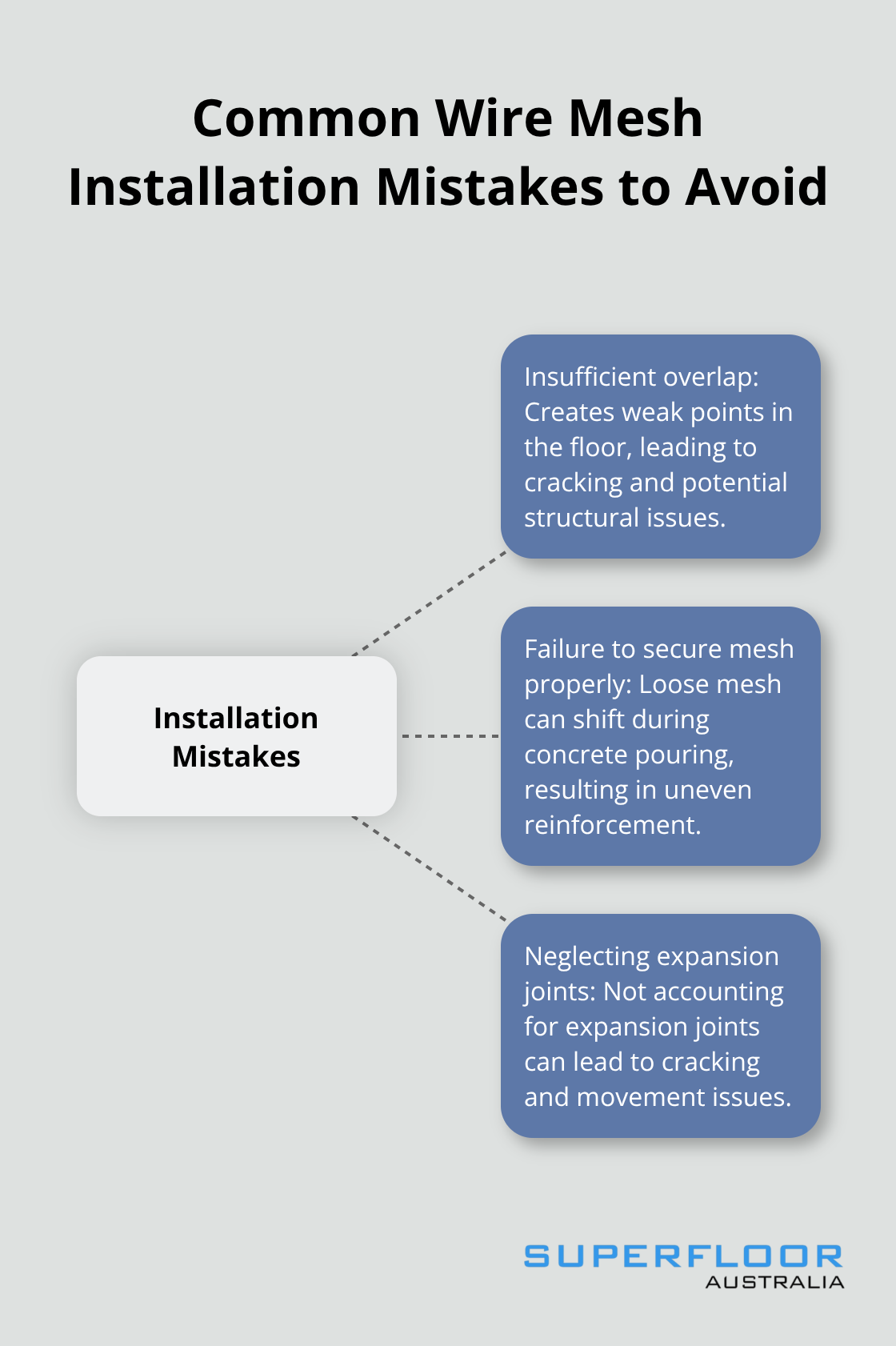

Common Installation Mistakes to Avoid
One frequent error involves insufficient overlap. This can create weak points in the floor, leading to cracking and potential structural issues. Always adhere to the recommended overlap guidelines.
Another mistake is the failure to secure the mesh properly. Loose mesh can shift during concrete pouring, resulting in uneven reinforcement. Use tie wire to secure overlaps and ensure the mesh attaches firmly to chairs or supports.
Neglecting to account for expansion joints can also lead to problems. Cut wire mesh at expansion joint locations to allow for movement and prevent cracking.
For outdoor concrete floors, we typically use square mesh designated in terms of the diameter of each bar and the spacing of consecutive bars. For example, SL62 consists of 6 mm bar at 200 mm spacings. For heavier loads, consider #3 or #4 rebar in a grid pattern.
Final Thoughts
Selecting the right wire mesh for concrete floors impacts the strength and longevity of your project. Professional advice proves invaluable when choosing wire mesh, as experts can assess your specific requirements and recommend the most suitable option. They can also guide you through local building codes and industry standards, ensuring your project meets all necessary regulations.
Proper installation maximises the effectiveness of your chosen reinforcement. Following best practices for placement, overlap, and concrete cover prevents future issues and ensures the longevity of your concrete floor. Quality wire mesh and proper installation reduce the risk of cracking, improve load-bearing capacity, and extend the lifespan of your concrete floor.
At Superfloor Australia, we understand the importance of quality in every aspect of concrete flooring (including wire mesh reinforcement). Our expertise in polished concrete flooring extends to the foundational elements. We’re committed to delivering durable, low-maintenance flooring solutions that stand the test of time.
